ULTRA COMM+2.LPCI: 2 Port RS-232/422/485 LP PCI Adapter ULTRA COMM+2.LPCI: 2 Port RS-232/422/485 LP PCI Adapter

ULTRA COMM+2.LPCI: 2 Port RS-232/422/485 LP PCI Adapter

Call for price

7205-ROHS

  • This product is classified as legacy and will be supported with limited, available inventory. Call for current pricing, product availability, and recommended alternatives.
Print Page

Product Details

This product is classified as legacy and will be supported with limited, available inventory. Call for current pricing, product availability, and recommended alternatives.

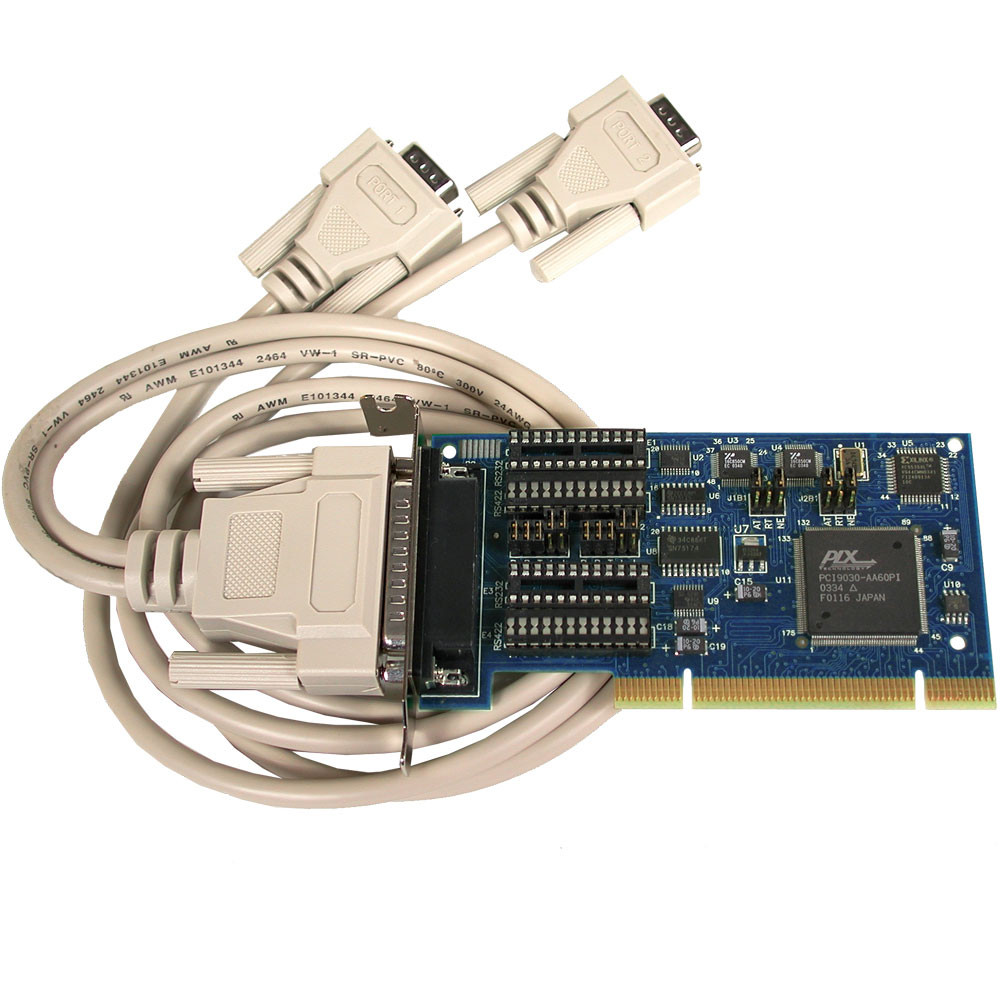

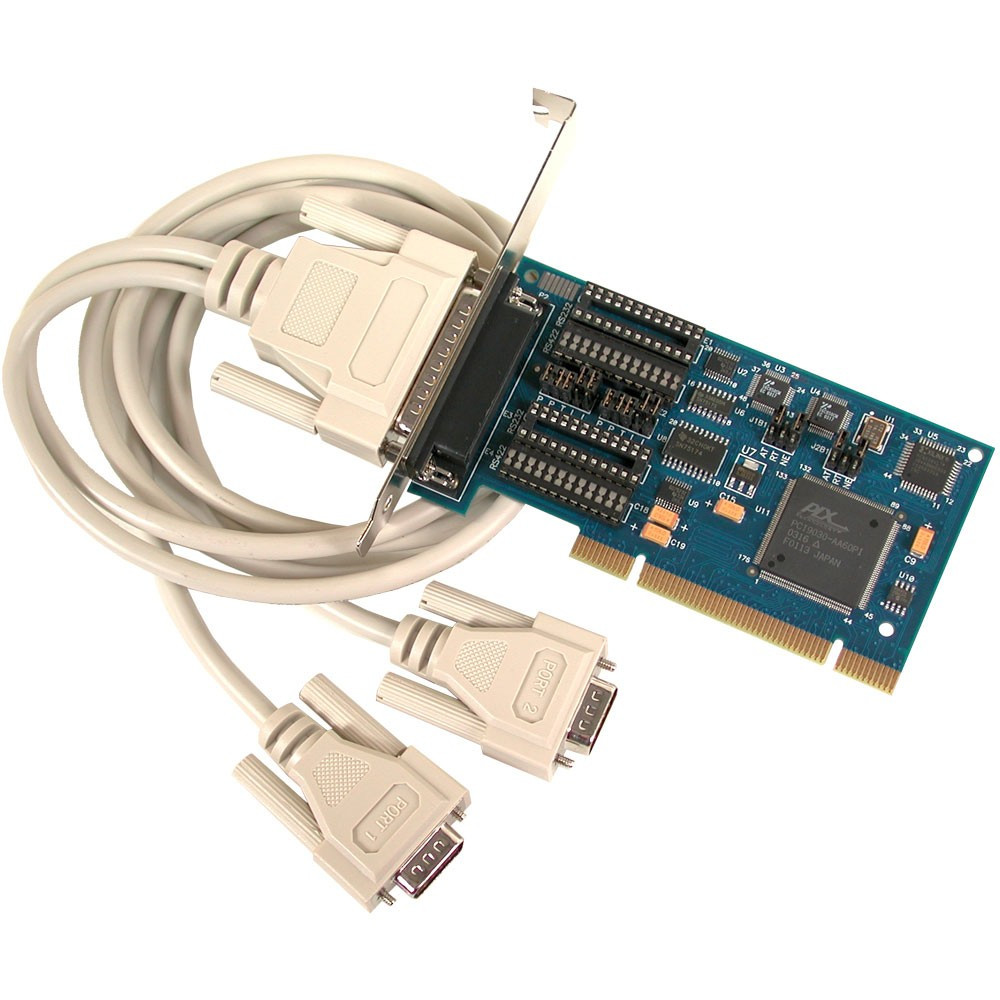

The 7205 PCI Low Profile serial interface provides two serial ports, each individually configurable for RS-232, RS-422, or RS-485. The board is capable of data rates to 921.6K bps and automatically handles RS-485 transmitter enable/disable. The 7205 utilizes 16C850 UARTs to provide 128-byte Tx/Rx FIFOs for maximum reliability in data-intensive applications. The board ships with a 36-inch cable that terminates to two DB9M connectors.

The Sealevel SeaCOM software driver and utilities make installation and operation easy using Microsoft Windows or Linux operating systems.

The 7205 is compatible with any low profile PCI slot. If you have a standard size PCI slot, be sure to select the standard profile bracket.

  • Specifications
  • Features
  • Software & Documentation

Specifications

  • Host Interface(s)

    PCI

  • Max Data Distance

    4000 feet

  • Operating Temperature

    0°C to 70°C (32°F to 158°F)

  • Communications Chip

    16C850

  • Electrical Interface

    RS-232, RS-422, RS-485

  • Card Height

    Low Profile

  • Max Data Rate

    921.6K bps

  • # of Ports

    2

  • Synchronous / Asynchronous

    Asynchronous

  • Serial Connector

    DB9
